Description

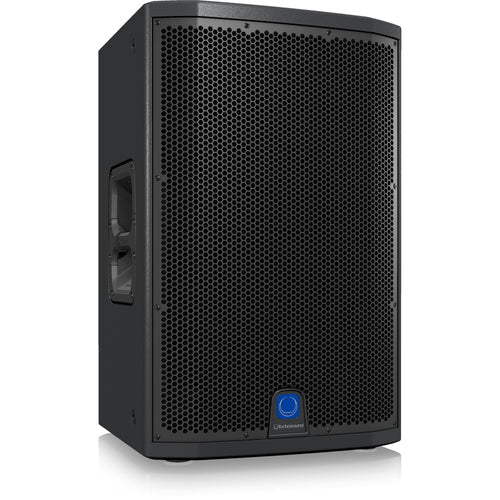

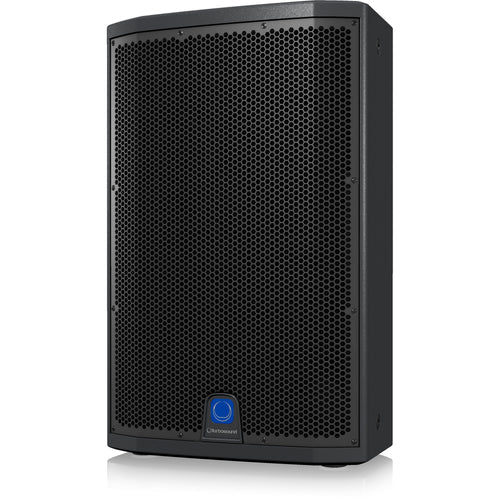

xThe 2-way full range TSP122-AN is a 2,500 Watt 12" powered loudspeaker system that is ideally suited for a wide range of portable and fixed installation speech and music sound reinforcement applications. Designed to work individually without a controller, the TSP122-AN provides optimal performance for FOH, sidefill and delay line loudspeakers, and is an exceptional choice for wedge monitoring applications. It also offers the flexibility to accommodate venue-specific requirements for install applications.
Custom-Engineered Drivers
Turbosound is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers. We take meticulous care and pride in maintaining that reputation by utilising only drivers designed specifically for each application – it’s what sets us apart from the competition. The TSP122-AN loudspeaker features a 12" low frequency driver with an inside/outside wound low mass voice coil for improved transient response and an titanium dome 1" high frequency compression driver, which is mounted on a 70° horizontal by 50° vertical dispersion low distortion waveguide.
Class-D – Massive Power, Perfect Sound
Equipped with a very efficient and lightweight Klark Teknik Class-D power amplifier, the TSP122-AN provides an impressive 2,500 Watts of output power in a highly portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and large heat sinks.
Onboard DSP
A high degree of control over the loudspeaker system‘s performance is managed by a sophisticated, but easy to use Klark Teknik Digital Signal Processor (DSP), which provides dynamic EQ and transparent limiting for the utmost punch and definition at high output levels – and long-term reliability.
Intuitive User Interface

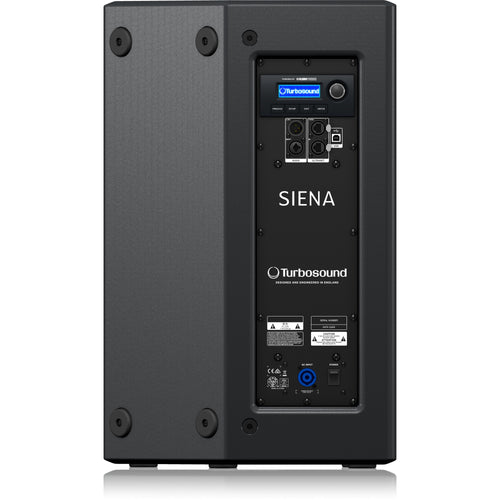

On the rear panel of the amplifier module, the user interface‘s LCD display and single rotary encoder provide intuitive access to: position compensation, user EQ control, subwoofer integration and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active loudspeakers or for use with active subwoofers. An onboard USB port provides access for remote control of the TSP122-AN via a free PC computer software download from turbosound.com – as well as convenient DSP firmware updates.
ULTRANET Connectivity
ULTRANET connectivity is provided by two locking etherCON * connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.
ULTRANET Connectivity
ULTRANET connectivity is provided by two locking etherCON * connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.
Birch Plywood Construction
Finished in a highly durable semi matt black paint, the cabinet is constructed from 18 mm (¾ ") birch plywood – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Multiple threaded rigging points are provided for suspension in any orientation, a dual-angle pole mount socket for use with 35 mm poles/speaker stands to optimise audience coverage, and durable handles for easy transport. The wedge shape design also enables the TSP122-AN to be utilised in low profile stage monitor applications where improved audience line of sight is of paramount importance. Mains power input is provided via a Neutrik powerCON * connector.
Touring-Grade Performance
Designed to provide exceptional performance for traveling musicians, or permanent installations such as houses of worship, banquet facilities, night clubs – and a host of other venues, the 2,500-Watt Siena TSP122-AN puts touring-grade sound quality into a scalable loudspeaker system that is supremely portable and versatile.
Specifications
System
| Frequency response |
50 Hz – 18 kHz ±3 dB |
| Nominal dispersion |
70° H x 50° V @ -6 dB Points |
| Maximum SPL |
133 dB peak |
| Crossover type |
Active |
| Transducers |
1 x 12" (316 mm) LF driver |
| Limiter |
Independent HF, LF, peak and rms |
Amplifier
| Maximum output power* |
2500 W |
| Type |
Class-D |
| Protection |
Short circuit, thermal |
Controls
| DSP |
Rotary push-encoder and level control |
User DSP Functions
| Factory EQ presets |
Positioning, Sound mode FBQ |
| Display |
LCD 128 x 32, blue, backlit |
| Delay |
0 - 300 ms |
| Equalisation |
High and low shelving EQ |
| Limiter |
Zero attack input limiter |
| Presets |
20 total presets, 19 user-definable |
| Crossover |
High Pass L-R 24 dB/oct |
| Protection |
Lock-out function for all settings |
Power Supply
| Power consumption |
90 W @ 1/8 max power |
Enclosure
| Dimensions HWD |
613 x 384 x 340 mm (24.1 x 15.1 x 13.4") |
| Net weight |
21.5 kg (61.2 lbs) |
| Construction |
18 mm (¾") birch plywood |
| Finish |
Semi matt black paint |
| Grille |
Powder coated perforated steel |
| Flying hardware |
M10 x 6 points |
