Behringer WING

The Behringer WING is a 48-stereo-channel digital mixer that’s ultra-powerful and incredibly easy to use. Benefit from first-class hands-on control thanks to 24 smooth-feeling motorized 100mm faders, a capacitive touchscreen, an adjustable display wheel, and touch-sensitive rotary controls.

Capture sound with the utmost quality, courtesy of eight MIDAS Pro mic preamps, while a bevy of digital I/O options provide near-limitless connectivity. Record up to 64 channels directly to dual-SD cards, use optional expansion cards to attain Dante, SoundGrid, or MADI support, or deploy the WING’s built-in 48-in/48-out USB audio interface to record straight to your DAW.

Getting around the WING is a breeze, thanks to its intuitive Sources, which emphasize your source audio rather than the nuts and bolts of your mix. Complete with 16 true-stereo processors with standard and classic modelled effects. The WING is a top-shelf digital console that will elevate your live sound capabilities.

• 48-stereo-channel digital mixer with 40 stereo input processing channels, as well as 8 stereo aux channels
• 28 stereo buses — 16 stereo aux buses, 8 stereo matrixes, and 4 stereo mains
• 24 smooth-feeling motorized 100mm faders in 3 separate, configurable sections
• 10.1” capacitive touchscreen, adjustable display wheel, and rotary controls provide touch-sensitive channel editing
• 8 MIDAS Pro mic preamps and MIDAS outputs ensure that you capture high-quality sound
• 3 AES50 ports provide plug-and-play remote I/O connectivity for up to 144 input and output signals
• AES50 networks are compatible with MIDAS M32 and Behringer X32 mixers
• 32-channel StageCONNECT interface for personal monitoring or analog I/O boxes

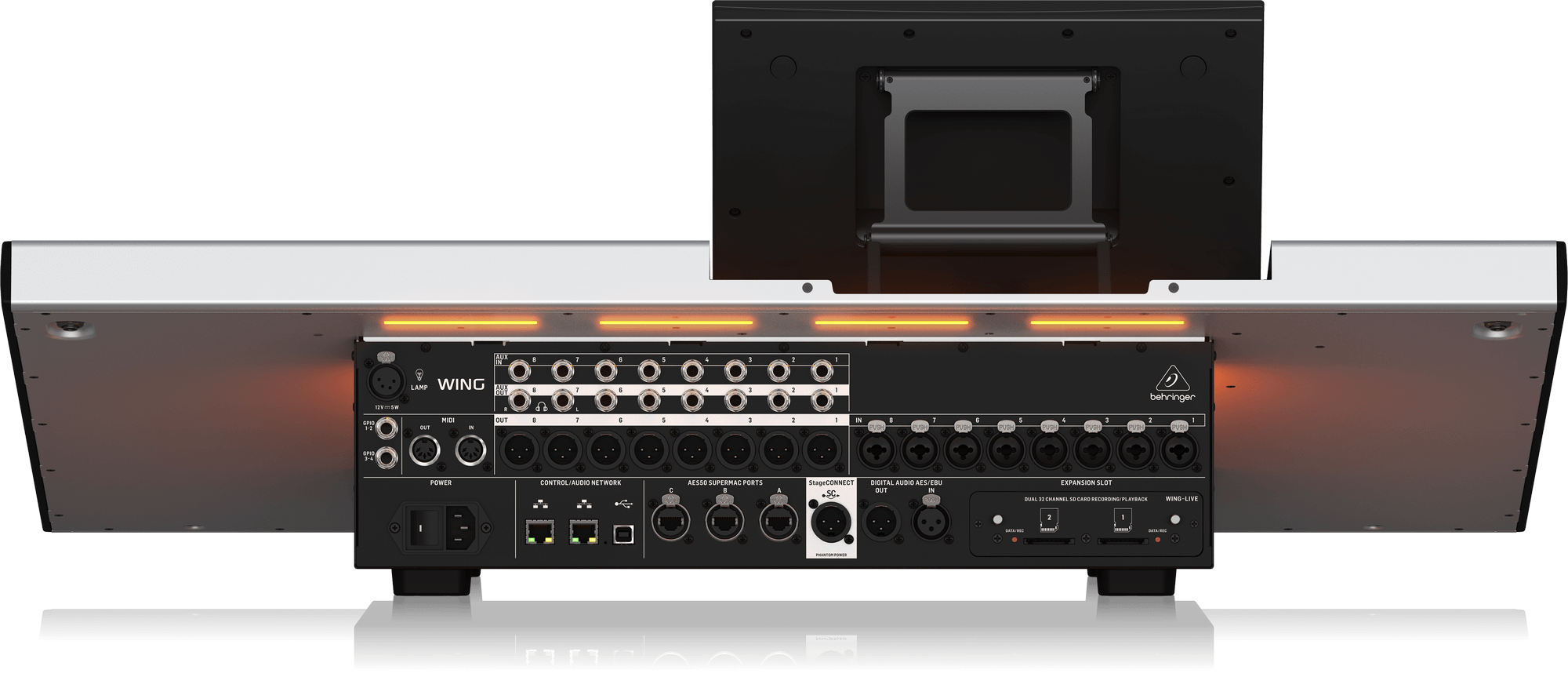

• Includes AES/EBU stereo digital I/O, 2 headphone connectors, MIDI I/O, and 4 GPIO ports
• Compatible with Behringer and MIDAS digital snakes, including the S16, S32, SD8, SD16, DL16, and DL32
• WING-LIVE card captures up to 64 channels of 32-bit/48kHz audio to a pair of SD or SDHC cards
• Optional expansion cards supply Dante, SoundGrid, or MADI support
• Built-in 48-in/48-out USB audio interface with HUI and Mackie Control DAW remote functionality
• Sources emphasized your source audio rather than your inputs and channels
• Apply names, icons, and colours to each Source for at-a-glance identification
• Each channel can be either mono, stereo, or mid-side — no channel linking is required
• 16 true-stereo processors with effects from Pultec, SSL, SPL, Neve, Focusrite, dbx, Universal Audio, Elysia, and Empirical Labs
• Auto Pilot supplies fast and dependable automixing with 2 groups of gain sharing
• Dual solo/monitor buses per channel for monitoring over phones/IEM and/or floor wedges
• Support for binary and OSC communication for remote operation
• WING Co-Pilot tablet app enables you to label or set parameters while patching from the stage.
